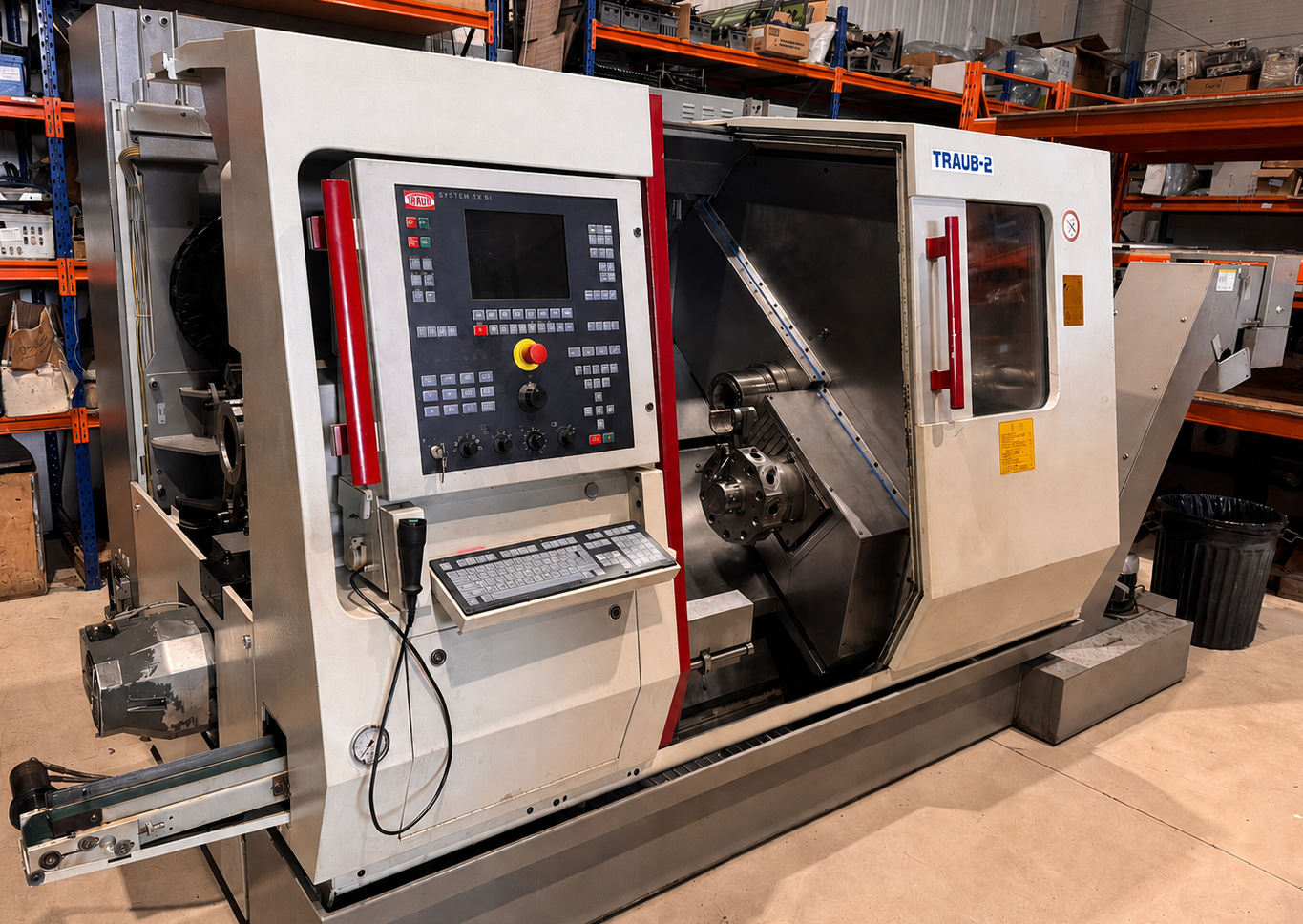

TNC42DGY Bj.2001 TX8H



·      2x 14 Stationen Revolver mit rotierendem Werkzeugantrieb VDI25

·      C-AchseAchse auf Haupt-/Gegenspindel

·      Y-Achse auf Revolver 1

·      173E Spanntops auf Haupt-/Gegenspindel
Hohlspannzylinder, Hydrafeed Multifeed MX-1B Kurzstangenlader vollständig integriert, einschließlich Lünette für größere Stangenlängen

·      Zusätzliche Kühlmittelpumpe und Anbauteile für Kühlmittelspülung/-wäsche durch die Gegenspindel, komplett mit Drehkupplung Typ Deublin.

·      Späneförderer

·      Ersatzteilverzeichnis, Schaltplan, ATC Optik

Maschine vollständig getestet, großer 8000-Stunden-Service durchgeführt
Geometrie der Maschine wurden überprüft und korrigiert/eingestellt

Maschinen unter Strom zu besichtigen – bzw. Video verfügbar

Standard equipment included

• Traub TX8H 32 bit CNC control system

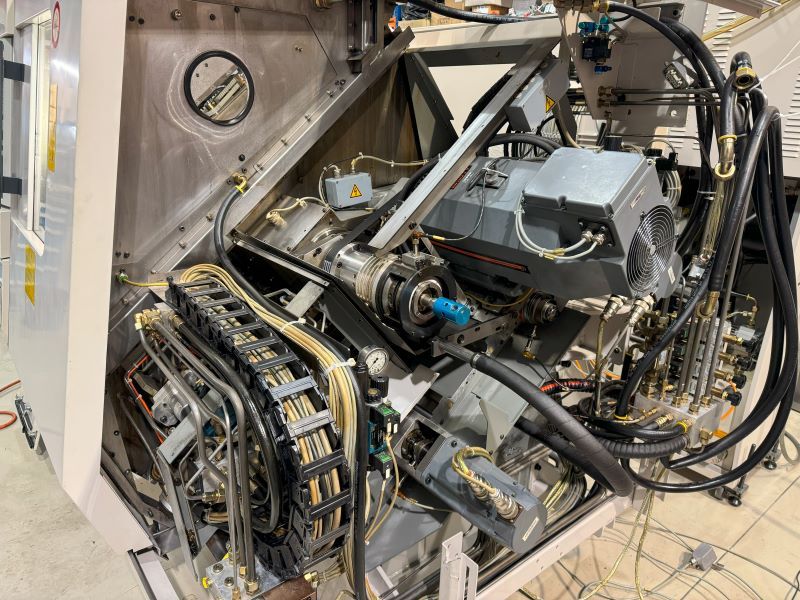

• A.C. drive motor for main spindle, with 18.5 kW at 1:5.2 constant rating

• Main Spindle with spindle nose to DIN 55026 A5 and 42mm bar

capacity and infinitely variable spindle speed to Maximum 5600 RPM

• Hydraulic operated hollow chucking cylinder

• S1 Upper and S2 Lower compound slides with two A.C. servo drives

via ball screws and with digital feed back. X and Z axis slide-ways with

linear motion bearing guides.

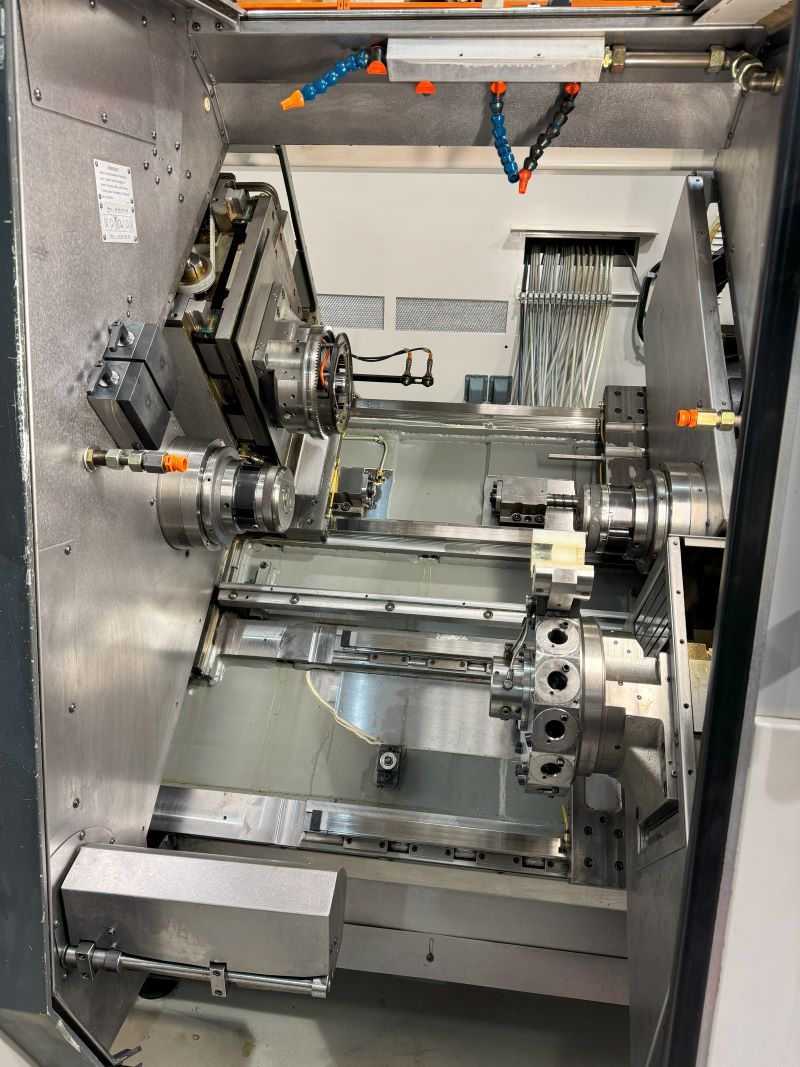

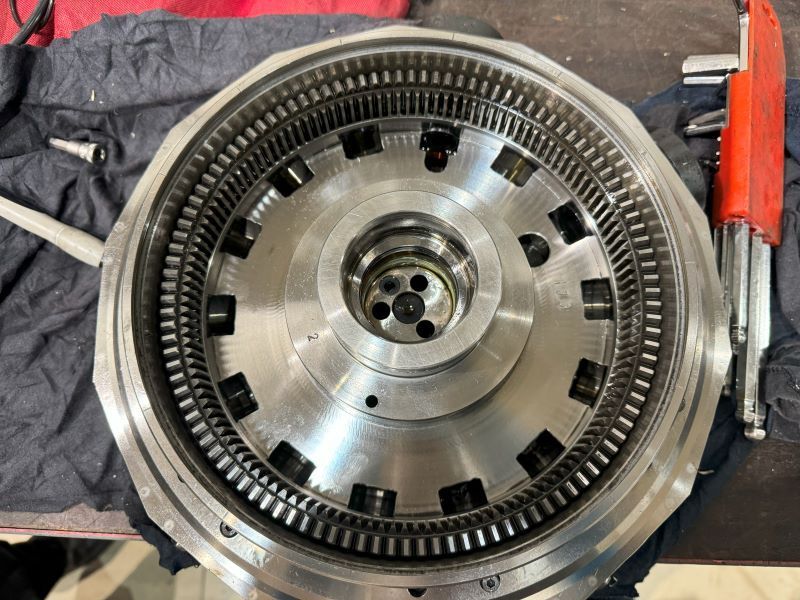

• 2 x 14 Station turret with tool registers for parallel shank to DIN 69880-

25 to accept VDI25 tooling (16 x 16 cross section tooling as standard)

• Opposed headstock spindle with spindle nose register to DIN 55026-

A5 with 42mm spindle capacity, A.C. drive motor with 11 kW at 1:8

constant rating, movement in Z direction. (V axis) NC controlled with AC

servo drive and ballscrew, including hydraulically operated hollow

chucking cylinder.

• High pressure coolant unit for S1 and S2 turrets, with one 12 bar

pressure pump and separate coolant tank. Coolant supply through

turrets.

Standard equipment included (cont.)

• Hydraulic system

• Swarf conveyor with 1200mm discharge height

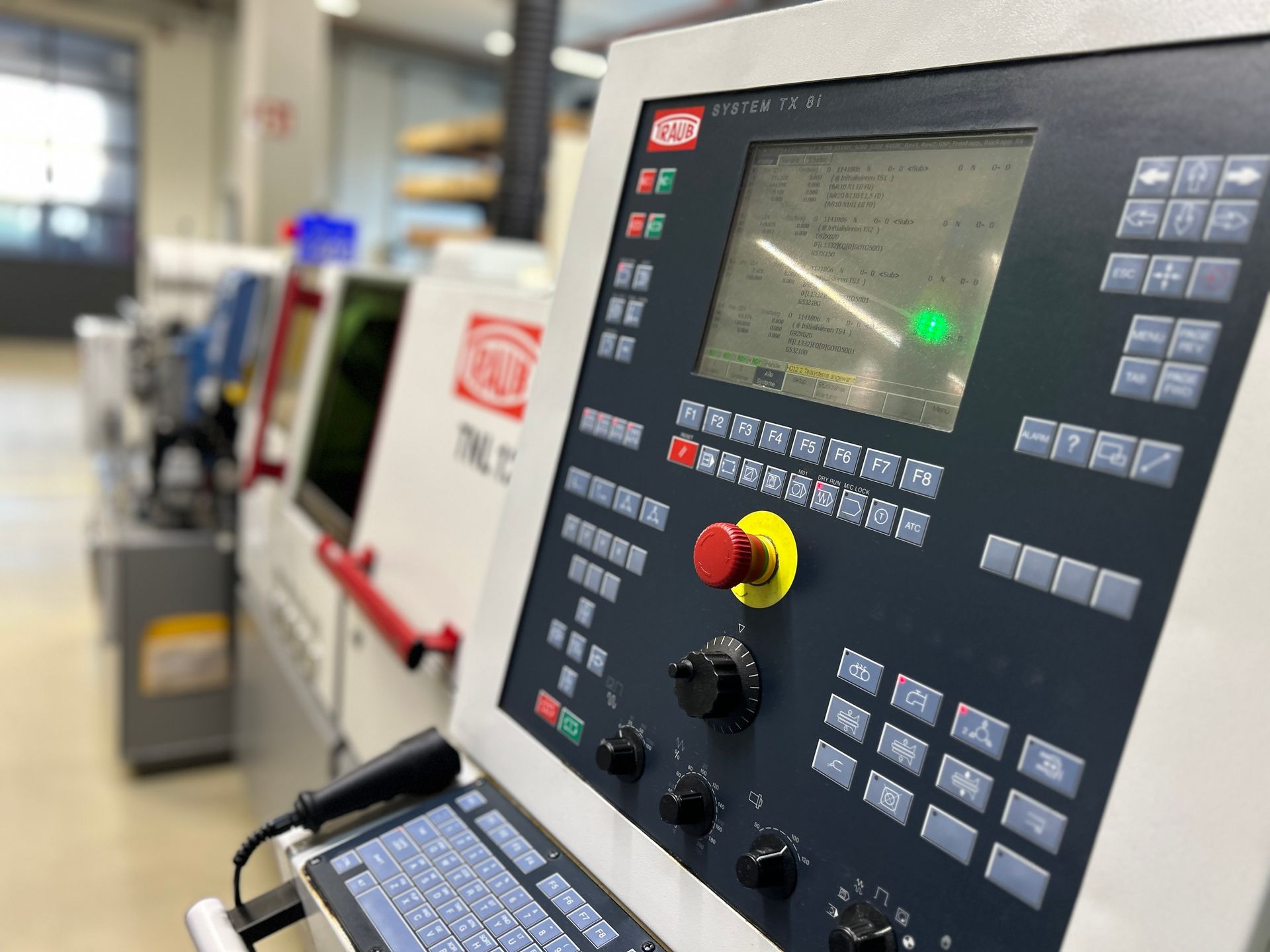

• Pivoting control operating panel with colour display screen

• Sliding cover over working area incorporating a viewing panel made of

laminated safety glass, with safety locking device

• Machine light

• Traub ‘ATC’ optical tool position measuring device

• The machine complies with the valid regulations for prevention of

accidents and is CE approved

• Electrical equipment, as per VDE/EN 60204 standards, wired to suit a

400 volt, 3 phase 50 cycle A.C. supply 24 volt control voltage.

• Interface for data transmission to peripheral equipment via V24 (25-

Polar/RS232)

• USB floppy disc drive emulator for data transmission to USB memory

stick

Attachments / Options included

• Numerically controlled rotating and positioning attachment for

main spindle and opposed spindles (C-Axis)

• Drive for rotating tools for turret S1 and turret S2 by 4Kw servo motor

(Infinitely variable programming speeds to maximum 5600 RPM)

• Y axis for off centre milling operations +/- 35mm travel fitted to turret 1.

• Collet Chucks – Rohm 173E collet chucks and attaching parts for main

spindle and opposed spindle.

• Additional coolant pump and attachments for coolant flush / wash

through opposed spindle, complete with high speed Deublin type rotary

coupling.

• Parts Gripper for removing the finished part from the opposed spindle.

Hydraulically operated.

• Finished Parts Conveyor for transporting the finished part out of the

machining area.

• Traub ‘Polyform’ Software for simplified programming of complex

milled profiles .

• Automatic cover hydraulically operated with safety edge. (Replaces

standard sliding cover.)

• Hydrafeed Multifeed MX-1B short bar loader fully interfaced,

including steady for longer bar lengths
